Technical information

General Application Architecture

The actual implementation of this project's website is based on Java 8 or, to be more precise, a respective web application. The needed runtime environment is provided by Apache Software Foundation’s Tomcat in its Version 8, where all of the following components beside the actual website are hosted. This runtime environment acts as a web server and – for the time being – is operating from a virtual machine in the AWS cloud.

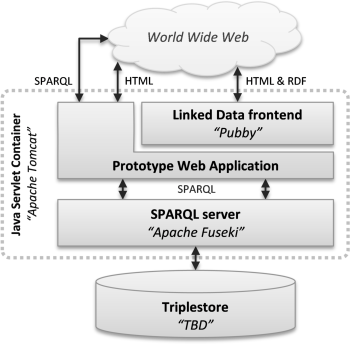

In the depicted figure above, the overall software architecture of this project with all important components is shown in an abstract way within this environment: Apache Fuseki as SPARQL server with an integrated, persistent triplestore is connected with this project's application via its full-blown SPARQL endpoint. Pubby in turn serves as Linked Data frontend of this application, while the application itself encapsulates a public SPARQL endpoint as well as the means to automatically generate authentic budget profiles with the underlying, provided data on this website.

Used third-party applications & libraries

This section should be a courtesy "one-stop" summary of the third party software used in this web application. Links provided may, however, be disabled or otherwise become usable over time for reasons outside of this website's control.

Apache Jena & Fuseki

For the actual implementation of Linked Data, handling of this RDF data in particular as well as for building a Semantic Web application in general, the popular Open Source framework called “Jena” by the Apache Software Foundation is used. This framework comprises various technical components needed for full-blown Linked Data applications – nearly all of them are also required for the implementation of this project. In a nutshell, these components are:

• an RDF API (Jena’s core API for parsing, processing and serialisation of RDF graphs)
• ARQ (a SPARQL query engine compliant with its most recent specification version 1.1)
• TDB (a native, high performance and persistent triplestore for RDF graphs)
• Fuseki (depending on its configuration, a standalone SPARQL server or an independent web application – incorporating TDB as data store and providing a full-blown SPARQL endpoint)
• A ontology API as well as an inference API including a rule based Semantic Web reasoner

All listed components except the last one, which – as a Semantic Web technology – goes beyond the scope of this project, is used in the technical implementation. Additionally, beside other syntaxes that can be integrated dynamically by the individual applications, Jena’s RDF API is able to read and write, or can be used for both parsing and serialisation, respectively, with a wide variety of RDF syntaxes:

• Turtle
• RDF/XML
• N-Triples
• JSON-LD
• RDF/JSON
• TriG
• TriX
• N-Quads
• RDF Binary

Jena is maintained and developed by the Apache Software Foundation as open source software since November 2010 down to the present day and can be used under the Apache Licence, Version 2.0.

Pubby

In order to provide Linked Open Data as such, dereferenceable, useful URIs are needed. The independent Linked Data frontend for SPARQL endpoints called “Pubby” is used by this project for this purpose as well as for separation of RDF’s URIs identifying resources from those describing the latter – including a respective technical concept and implementation for redirecting requests from the former to the latter with sophisticated content negotiation.

As depicted above, this Linked Data frontend makes URIs within a given namespace of Linked Data, which is provided by a third-party, local or remote SPARQL endpoint, dereferenceable. Pubby itself is implemented as a Java web application that passes client request towards a given webserver domain or URI to the mentioned SPARQL endpoint, and responses – via respective content negotiation – appropriately to the original request directly, while other SPARQL clients can still freely access the very same SPARQL endpoint Pubby uses as well. This enables transparent publication of Linked Data of a given domain incorporating all the requirements incurred by the definition of Linked Open Data.

Pubby was originally developed by Richard Cyganiak (with the involvement of Chris Bizer) at the Free University of Berlin starting in 2007. It is available as a GitHub project as well as a open source software under the terms of the Apache Licence, Version 2.0. Pubby was originally also used by the famous DBpedia project.

Application Libraries

Library Name	Version	Brief Description	Project Page	Licence	Licence Terms
Spring Framework	4.3.11	An open source application framework and inversion of control container for the Java platform.	LINK	Apache 2.0	LINK
JSTL	1.2	The JavaServer Pages Standard Tag Library (JSTL) is a component of the Java EE Web application development platform. It extends the JSP specification by adding a tag library of JSP tags for common tasks.	LINK	CDDL 1.1	LINK
YASGUI	2.7.5	Yet Another Sparql GUI (YASGUI) consists of the JavaScript libraries YASQE (a SPARQL Query Editor) and YASR (a SPARQL Resultset Visualizer) for easy to use SPARQL frontend integration for third-party applications.	LINK	MIT License	LINK
Apache Commons FileUpload	1.3.3	The Apache Commons FileUpload package robust, high-performance library for processing file uploads to web applications.	LINK	Apache 2.0	LINK
Apache Commons CSV	1.5	The Apache Commons CSV package reads and writes files in variations of the Comma Separated Value (CSV) format.	LINK	Apache 2.0	LINK
GeoNames Java Client	1.1.13	The GeoNames Java library helps to easily access the GeoNames web services with Java.	LINK	Apache 2.0	LINK
log4j	2.9.1	A Java-based logging utility framework.	LINK	Apache 2.0	LINK
SLF4J	1.7.25	Simple Logging Facade for Java (SLF4J) provides a Java logging API by means of a simple facade pattern. The underlying logging backend is determined at runtime by adding the desired binding to the classpath.	LINK	MIT License	LINK

Frontend Framework

This website or the layout of this website, respectively, is based on Version 6 of the Foundation Framework for responsive frontends. It is MIT licensed, and free to use and modify. Foundation is widely adopted and contains various design templates in CSS, enhanced with its own JavaScript-library.

---
